[Verilog] Arithmetic Circuit
17Hyuk
2022. 12. 21. 18:47
https://hdlbits.01xz.net/wiki/Problem_sets
Problem sets - HDLBits
hdlbits.01xz.net
Hadd
Half Adder(반가산기)
module top_module(
input a, b,
output cout, sum );
assign cout = a & b;
assign sum = a ^ b;
endmodule
Fadd
Full Adder(전가산기)
module top_module(
input a, b, cin,
output cout, sum );
assign cout = a&b | b&cin | cin&a;
assign sum = a ^ b ^ cin;
endmodule
※ Half Adder vs Full Adder
carry_in이 있으면 Full 없으면 Half
ece241_2014_q1c
overflow를 감지하는 회로 설계
module top_module (
input [7:0] a,
input [7:0] b,
output [7:0] s,
output overflow
);
assign s = a + b;
// always @(*) begin
// overflow = 0;
// if(a[7] == b[7])
// if(a[7] != s[7])
// overflow = 1;
// end
assign overflow = ~a[7]&~b[7]&s[7] | a[7]&b[7]&~s[7];
endmodule
※ overflow가 발생하기 위해서는 2값의 최상위 비트가 같을 때 두값의 합의 최상의 비트가 다르면 발생

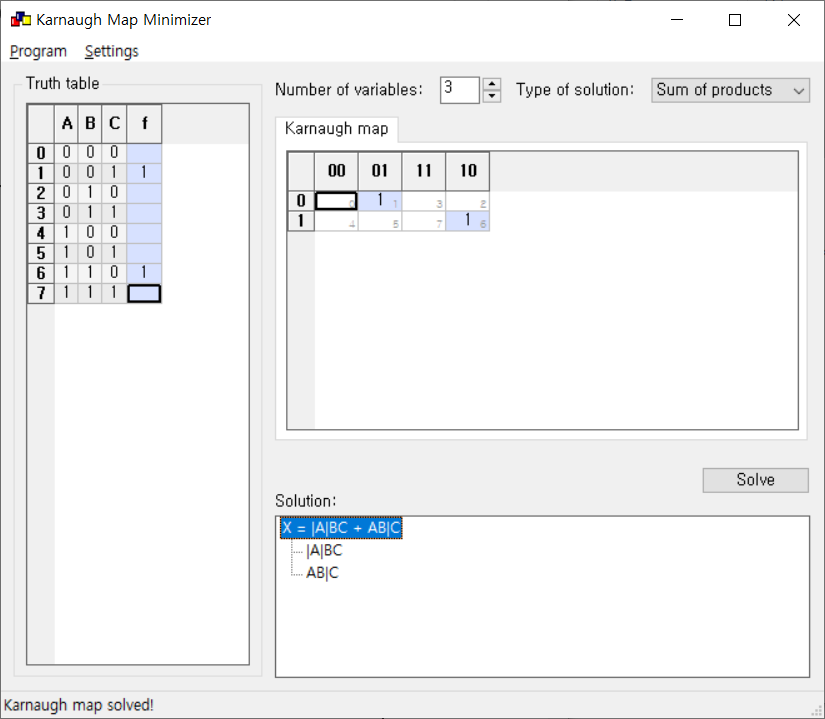

※ 진리표를 이용해서 간소화
